Sewing Machines

Single or twin needle lockstitch post bed machines with integrated direct drive and programmable setting elements for stitching operations in the shoe production materials easily.

Program-supported sewing processes

The core of our industrial sewing machines is a purely mechanical element – the hook. Another enormous potential for a further improvement of the approved sewing technology is offered by the use of modern electronics. We have taken advantages of these possibilities to create the program level M-TYPE PREMIUM.

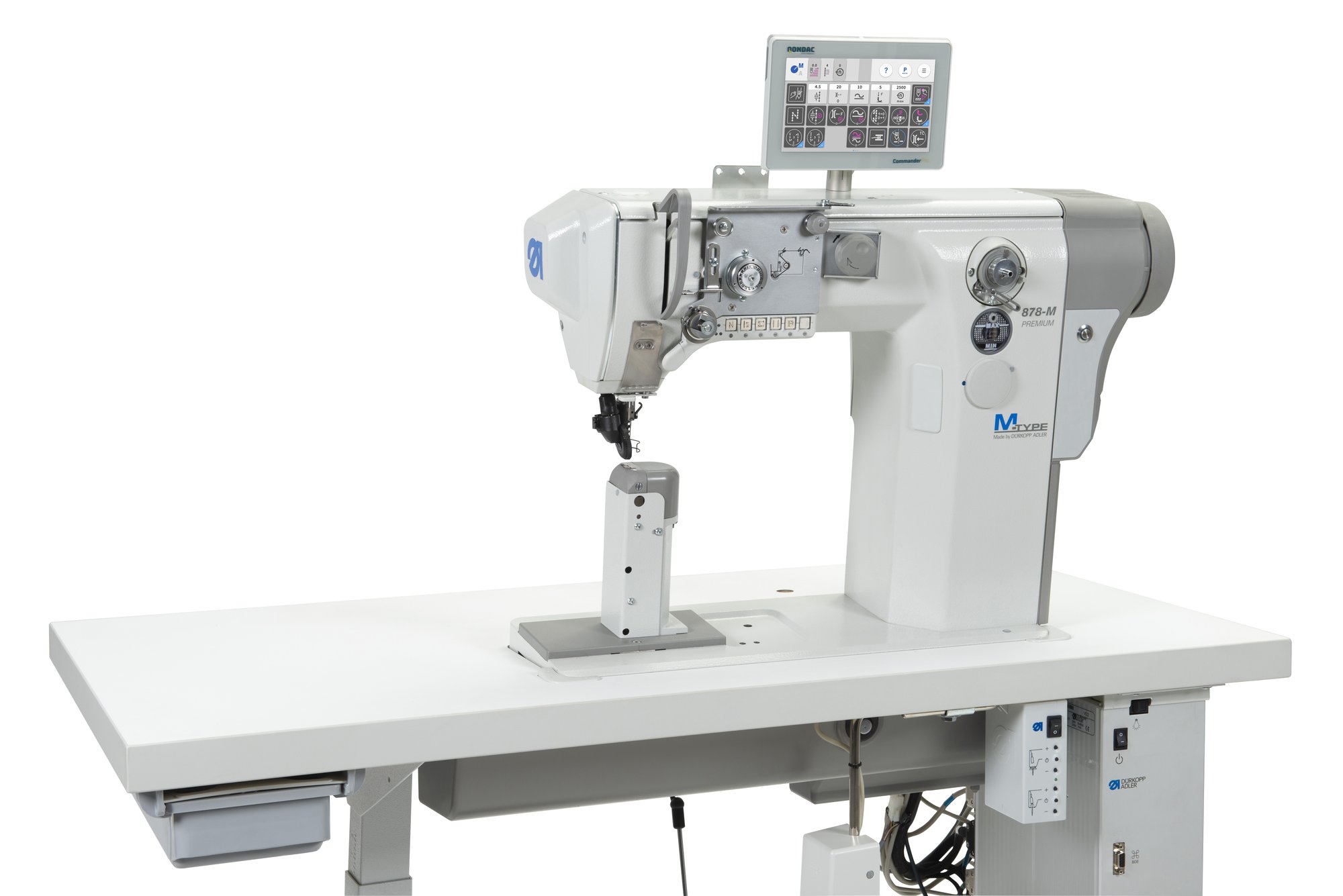

The subclasses of the 878-M PREMIUM are characterised by programmable, electronic setting elements for stitch length, sewing foot lift, sewing foot pressure as well as thread tension. All required sewing parameters are intuitively set at the control panel and can be called up at any time.

The innovative drive concept of this machine class consisting of a powerful sewing drive integrated in the machine head combined with our DAC COMFORT control and the control panel OP3000. These features provide perfect operating conditions with excellent performance parameters.

Your specific advantages of the 878-M PREMIUM

• M-TYPE 878-M PREMIUM with programmable setting elements and approved M-TYPE sewing technology
• Capability of roller presser and wheel feed speed rate quick changing in large scope (gathering function)
• Integrated direct drive with DAC Comfort including control panel OP3000 ensures optimum functionality
• Programmable electronic thread tension (optional) for reproducible sewing results
• Programmable stitch length adjustment by means of integrated step motors
• Programmable sewing foot pressure and sewing foot lifting height by means of integrated step motor
• Capability of sewing operation programming. Programs can be stored in control unit memory and transferred to other sewing machines.
• Machine-specific software with intuitive user interface for convenient administration of sewing parameters
• Electronic needle positioning and moving to a start-stitch position by jog dial
• Integrated LED sewing lamp with dimmer
• Electronic knee switch with programmable function

Your advantages of the approved M-TYPE series

• Highest precision on stitch locking even during sewing speed changes
• Low noise and vibration
• Automatic bobbin winder with start up function
• Simple needle guard adjustment by screw
• Fully integrated solenoids – no compressed air required
• Lubricating system with central oil tank and oil pump
• Processing of thick sewing thread sizes up to NM 10/3
• Sewing speed up to 3 000 stitches/min.
• The wide range of sewing equipment, attachments and optional equipment guarantees the optimum solution for most of sewing operations

Advantages

• Highest precision on stitch locking even during sewing speed changes
• Secured sewing start after cutting can be influenced by movable needle plate inserts
• Automatic bobbin winder with start up function
• Manual switchable second thread tension for optimised sewing results (ECO)
• Low noise and vibration
• The powerful and effective feeding system with wheel feed, needle feed and driven roller presser guarantees excellent material feed when processing different material thicknesses
• Large hook (26 mm bobbin)
• Simple needle guard adjustment by screw
• Device for controlling the difference between the upper and bottom feed from +10% to –10% (standard for 888-256…-M, optional for 888-167…-M)
• Machines are equipped with tiltable and adjustable edge guide
• Fast dismantling of hook
• Needle change without tools
• Lubricating system with central oil tank and oil pump
• Roller presser setting by operator without tools (optional)
• Integrated built-in motor to save energy, easy maintenance
• Switch button for setting a reduced stitch, e.g. at material borders and integrated keypad with ergonomically arranged sensor key (advanced functions optional for CLASSIC)
• Fully integrated solenoids (CLASSIC), no compressed air required
• Integrated LED sewing light (optional)
• Easy maintenance and access, only a few tools needed

With its outstanding performance parameters this series is setting new standards as regards stitching operations in the shoe production. In conjunction with the needle feed and the driven roller foot the double feeding of the wheel bottom feed ensures quiet and smooth sewing with exact stitch length, even when sewing over extremely thick spots. The manual back-tacking device ensures a "stitch-in-stitch" back-tacking. The special sewing kinematics allowing to use a thread variety unrivalled so far makes this series a promising operating means of universal use.

Automatic thread trimmer, presser-foot lift and back-tacking with push-button are decisive factors for a high productivity.

Advantages

• Automatic bobbin winder with start up function
• Low noise and vibration
• The powerful and effective feeding system with wheel feed, needle feed and driven roller presser guarantees excellent material feed when processing different material thicknesses
• An easy replacement of wheel feeder without tools (single-needle machines)
• Standard hook (22 mm bobbin) or large hook (26 mm bobbin), as per subclass
• Simple needle guard adjustment by screw
• Fast dismantling of hook
• Needle change without tools (single needle machines)
• Lubricating system with central oil tank and oil pump
• Roller presser setting by operator without tools (optional)
• Integrated LED sewing light (optional)
• Easy maintenance and access, only a few tools needed

With its outstanding performance parameters this series is setting new standards as regards stitching operations in the shoe production. In conjunction with the needle feed and the driven roller foot the double feeding of the wheel bottom feed ensures quiet and smooth sewing with exact stitch length, even when sewing over extremely thick spots. The manual back-tacking device ensures a “stich-in-stich” back-tacking.The special sewing kinematics allowing to use a thread variety unrivalled so far makes this series a promising operating means of universal use

Advantages

• Automatic bobbin winder with start up function
• Low noise and vibration
• The powerful and effective feeding system with wheel feed, needle feed and driven roller presser guarantees excellent material feed when processing different material thicknesses
• An easy replacement of wheel feeder without tools (single needle machines)
• Standard hook (22 mm bobbin) or large hook (26 mm bobbin), as per subclass
• Simple needle guard adjustment by screw
• Fast dismantling of hook
• Needle change without tools (single needle machines)
• Lubricating system with central oil tank and oil pump
• Roller presser setting by operator without tools (optional)
• Integrated LED sewing light (optional)
• Easy maintenance and access, only a few tools needed

With its outstanding performance parameters this series is setting new standards as regards stitching operations in the shoe production. In conjunction with the needle feed and the driven roller foot the double feeding of the wheel bottom feed ensures quiet and smooth sewing with exact stitch length, even when sewing over extremely thick spots.

The manual back-tacking device ensures a "stitch-in-stitch" back-tacking. The special sewing kinematics allowing to use a thread variety unrivalled so far makes this series a promising operating means of universal use.

Advantages

• Automatic bobbin winder with start up function
• Low noise and vibration
• The powerful and effective feeding system with wheel feed, needle feed and driven roller presser guarantees excellent material feed when processing different material thicknesses
• An easy replacement of wheel feeder without tools (single-needle machines)
• Standard hook (22 mm bobbin) or large hook (26 mm bobbin), as per subclass
• Simple needle guard adjustment by screw
• Fast dismantling of hook
• Needle change without tools (single needle machines)
• Lubricating system with central oil tank and oil pump
• Roller presser setting by operator without tools (optional)
• Integrated LED sewing light (optional)
• Easy maintenance and access, only a few tools needed

With its outstanding performance parameters this series is setting new standards as regards stitching operations in the shoe production. In conjunction with the needle feed and the driven roller foot the double feeding of the wheel bottom feed ensures quiet and smooth sewing with exact stitch length, even when sewing over extremely thick spots. The manual back-tacking device ensures a “stitch-in-stitch” back-tacking. The special sewing kinematics allowing to use a thread variety unrivalled so far makes this series a promising operating means of universal use.

Advantages

• Highest precision on stitch locking even during sewing speed changes
• Secured sewing start after cutting can be influenced by movable needle plate inserts
• Automatic bobbin winder with start up function
• Low noise and vibration
• The powerful and effective feeding system with wheel feed, needle feed and driven roller presser guarantees excellent material feed when processing different material thicknesses
• Easy throat plate change without tools (Option for single needle machines)
• An easy replacement of wheel feeder without tools (single needle machines)
• Standard hook (22 mm bobbin) or large hook (26 mm bobbin), as per subclass
• Simple needle guard adjustment by screw
• Device for controlling the difference between the upper and bottom feed from +10% to –10% (optional)
• Fast dismantling of hook
• Needle change without tools (single needle machines)
• Lubricating system with central oil tank and oil pump
• Roller presser setting by operator without tools (optional)
• Integrated built-in motor to save energy, easy maintenance
• Switch button for setting a reduced stitch, e.g. at material borders and integrated keypad with ergonomically arranged sensor key (advanced functions optional for CLASSIC)
• Fully integrated solenoids (CLASSIC), no compressed air required
• Integrated LED sewing light (optional)
• Easy maintenance and access, only a few tools needed

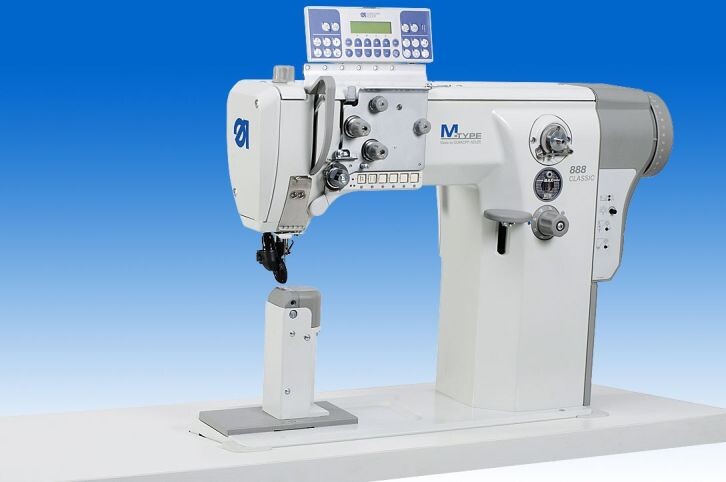

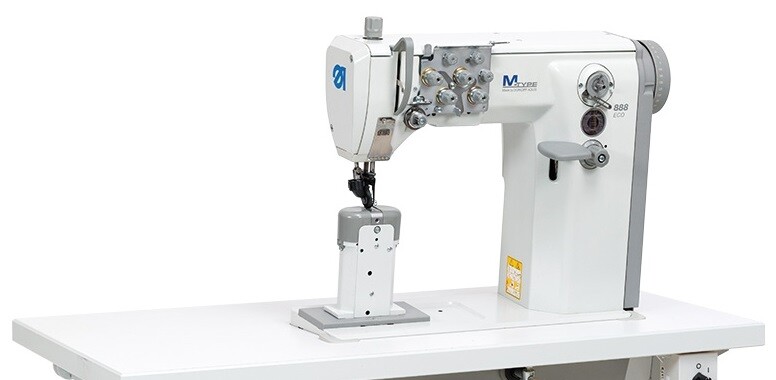

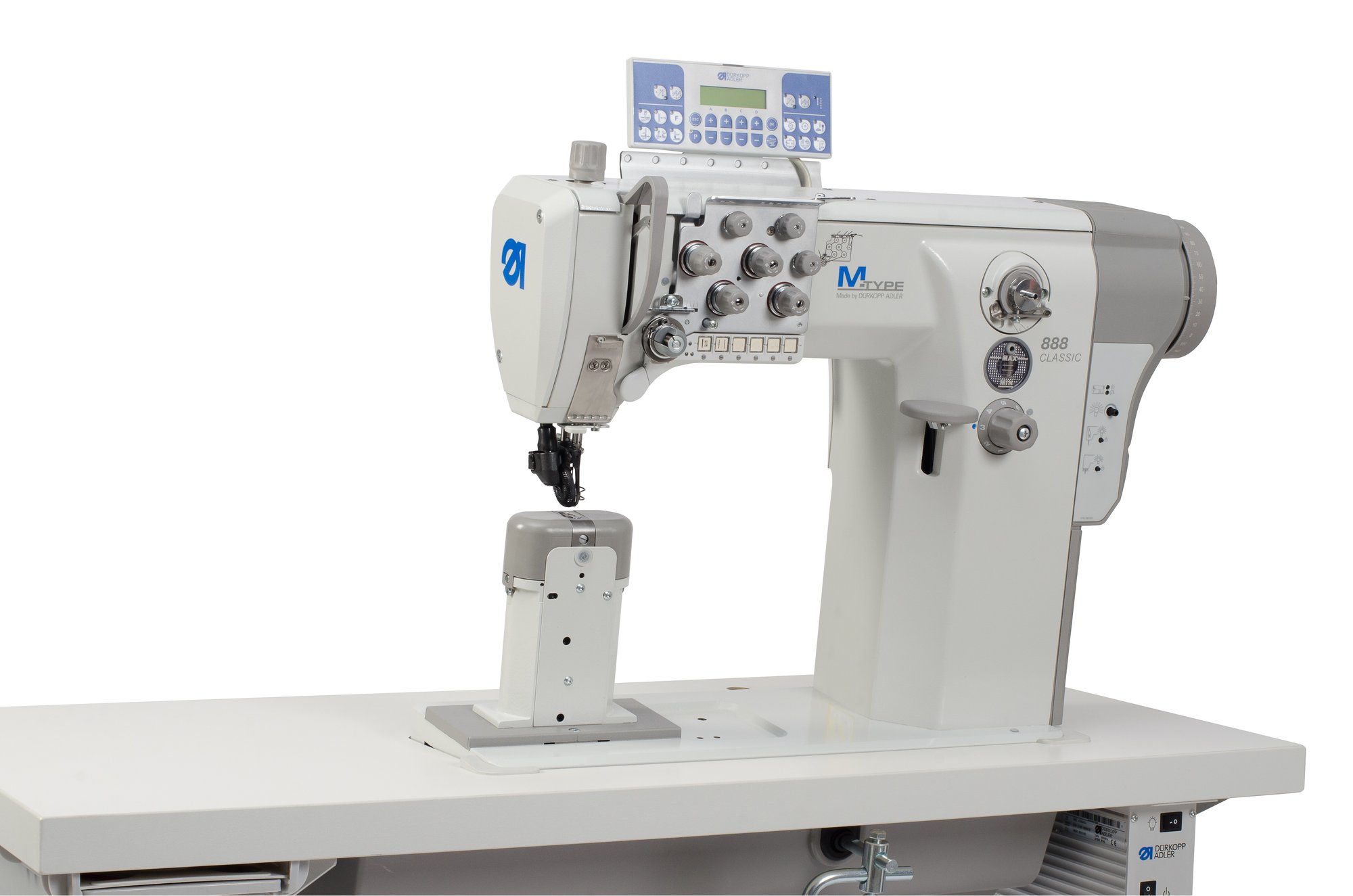

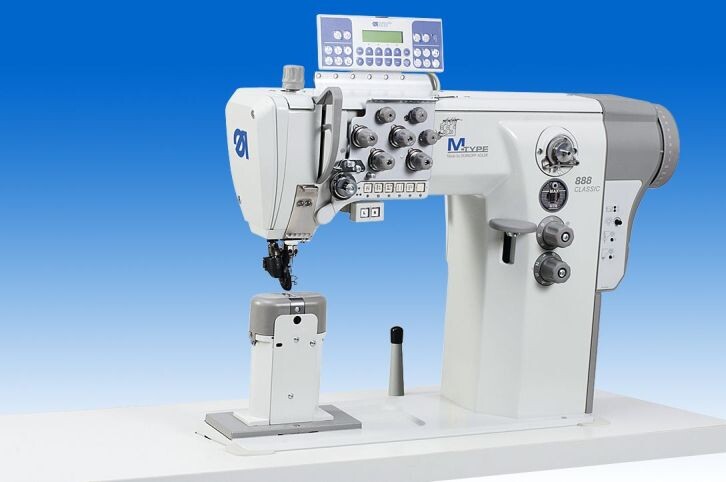

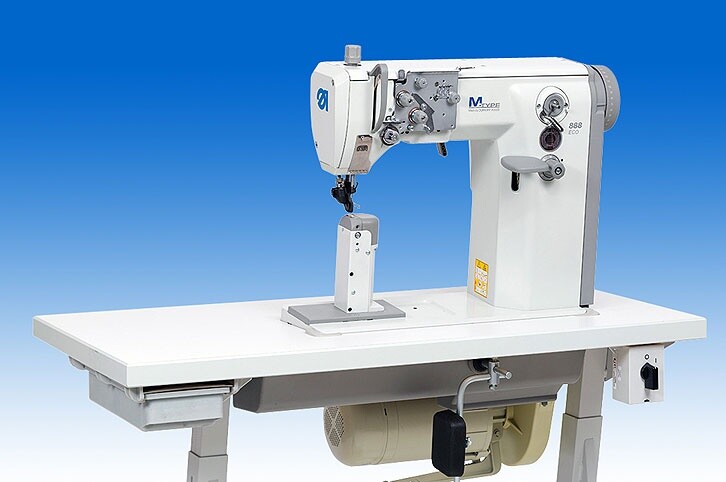

The M-TYPE generation of post bed machine class 888 has set new standards in the shoe production. When developing the new series, requirements of famous shoe manufacturers were taken into account, resulting in a future-oriented concept characterised by highly efficient sewing parameters, durable construction and unique flexibility. Together with the modern design, this makes class 888 an ideal operating means of universal use.

This machine class perfectly fits a professional performance of sewing operations on shoes and different leather articles. To avoid crossed seams at the corners, the machine is equipped with an electro-pneumatic mechanism for disconnection of the left or right needle.

Advantages

• Machine belongs to M-Type series having all advantages and features
• Independently disconnectable left/right needle
• Automatic bobbin winder with start up function
• Integrated 2nd stitch length and switchable thread tension
• Fast dismantling of hook
• Electro-pneumatic seam back-tacking and presser foot lift

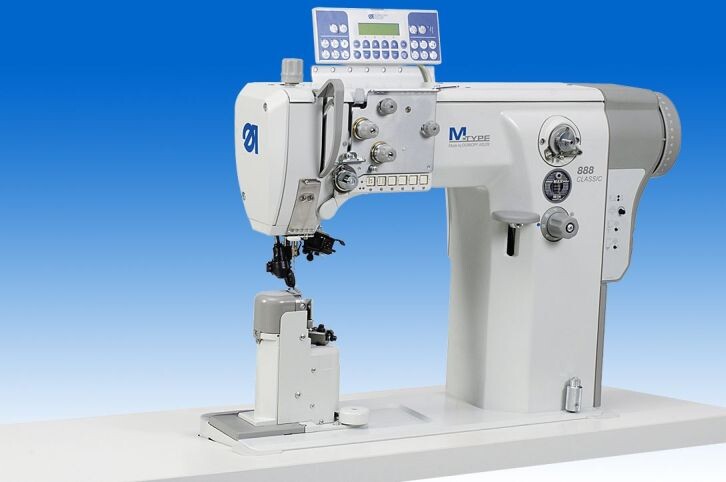

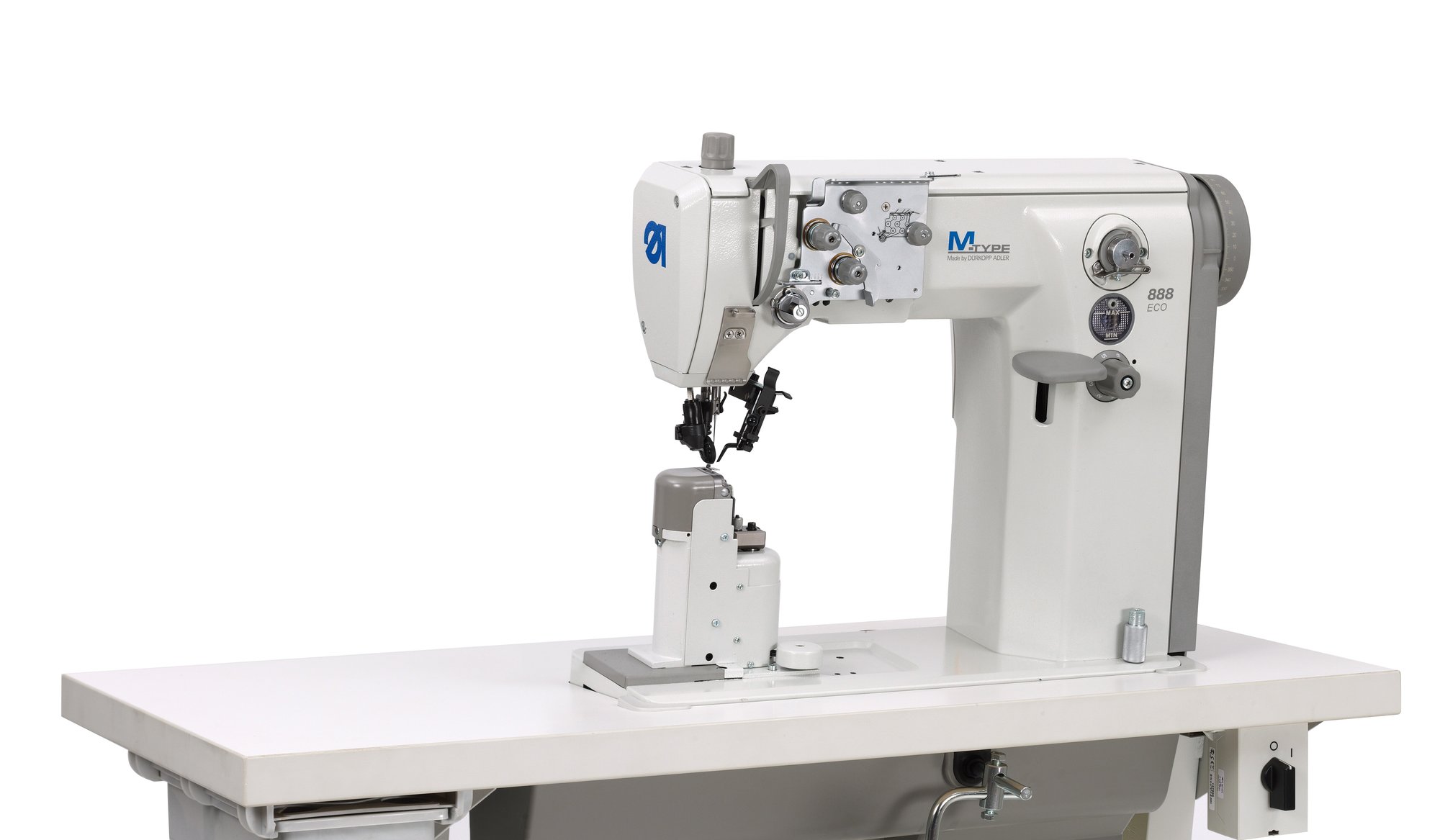

New models with motor-driven horizontal lining trimmer are designed to fulfil the highest demands of shoe producers on the quality of shoe uppers. Precise and durable construction of the lining trimmer guarantees uniform and neat lining edges even on inner curves and other difficult sections. The machine is equipped with a large hook, enabling use for a wide range of applications.

Advantages

• Highest precision on stitch locking even during sewing speed changes
• Equipment for 4 different trimming margins
• Easy winding due to automatic bobbin winder with start up function
• Manual switchable second thread tension for optimised sewing results (ECO)
• Low noise and vibration
• The powerful and effective feeding system with wheel feed, needle feed and driven roller presser guarantees excellent material feed when processing different material thicknesses
• Increased productivity due to large vertical hook with high winding capacity
• Simple needle guard adjustment by screw
• Device for controlling the difference between the upper and bottom feed from +10% to –10%
• Fast hook exchange
• Needle change without tools (single needle machines)
• New lubricating system with central oil tank and oil pump
• Roller presser setting by user without tools (optional)

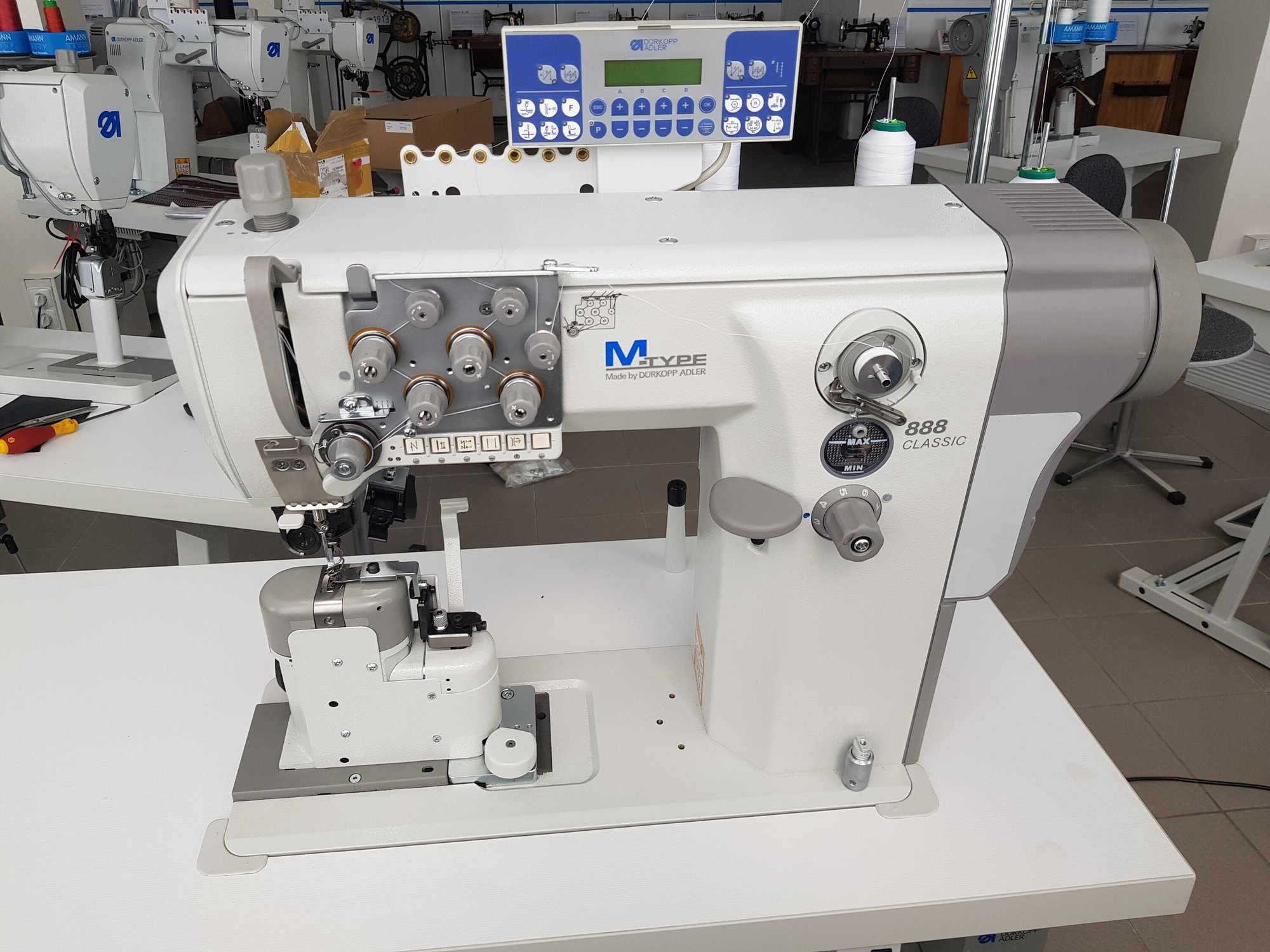

New models with motor-driven horizontal lining trimmer are designed to fulfil the highest demands of shoe producers on the quality of shoe uppers. Precise and durable construction of the lining trimmer guarantees uniform and neat lining edges even on inner curves and other difficult sections. The machine is equipped with a large hook, enabling use for a wide range of applications.

Advantages

• Highest precision on stitch locking even during sewing speed changes
• Equipment for 4 different trimming margins
• Easy winding due to automatic bobbin winder with start up function
• Manual switchable second thread tension for optimised sewing results (ECO)
• Low noise and vibration
• The powerful and effective feeding system with wheel feed, needle feed and driven roller presser guarantees excellent material feed when processing different material thicknesses
• Increased productivity due to large vertical hook with high winding capacity
• Simple needle guard adjustment by screw
• Device for controlling the difference between the upper and bottom feed from +10% to –10%
• Fast hook exchange
• Needle change without tools (single needle machines)
• New lubricating system with central oil tank and oil pump
• Roller presser setting by operator without tools (optional)
• Integrated built-in motor to save energy, easy maintenance (optional – CLASSIC)
• Switch button for setting a reduced stitch, e.g. at material borders (CLASSIC)
• Fully integrated solenoids (CLASSIC), no compressed air required
• Integrated keypad with ergonomically arranged sensor key (CLASSIC)
• Easy maintenance and access, only a few tools needed
• New lubricating system with adjustable hook lubrication
• Sewing drive fastened at the machine head

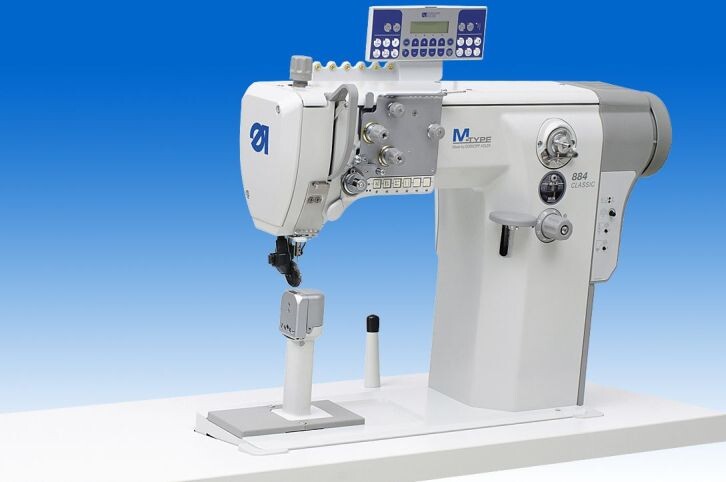

The M-TYPE post bed machine class 884-M perfectly fits the production of small-sized shoe uppers. When reaching the limits of standard post bed machines, this machine offers effective working thanks to the unique small post.

Electromagnetic automatic functions of the Classic version — such as thread trimmer, foot lifting and back-tacking — guarantee productivity on machine class 884-M at the same level as other M-TYPE shoe machines with these functions.

Subclass comparison

Sewing processes on tubular workpieces make highest demands on the qualification of the operator and on the efficiency of the sewing technology. The subclasses of the new M-TYPE free arm machine 669 with particularly slim machine arm make it possible to professionally realize difficult sewing processes like assembly and binding operations as well as decorative stitching on small leather goods and difficultly accessible or tubular workpieces. A special feature of the 669 is its ability to bind the material edge with low tension. For this operation the bottom feed stroke can be deactivated by just a few steps which enables an optimum feeding movement. Sewing equipment especially adapted to this sewing operation allows a precise binding result combined with maximum productivity and quality. The 669 CLASSIC Silverline is equipped with automatic basic functions.

Advantages

• Small diameter of hook post (post dimensions are 170 x 43 x 49.2 mm) enables use of the machine for difficult operations on small-sized shoes and other jobs
• Highest precision on stitch locking even during sewing speed changes
• Automatic bobbin winder with start up function
• Manual switchable second thread tension for optimised sewing results (ECO)
• Low noise and vibration
• The powerful and effective feeding system with wheel feed, needle feed and driven roller presser guarantees excellent material feed when processing different material thicknesses
• Standard hook with 22 mm bobbin
• Simple needle guard adjustment by screw
• Device for controlling the difference between the upper and bottom feed from +10% to –10% (optional)
• Fast dismantling of hook
• Needle change without tools
• Lubricating system with central oil tank and oil pump
• Roller presser setting by operator without tools (optional)
• Integrated built-in motor to save energy, easy maintenance
• Switch button for setting a reduced stitch, e.g. at material borders and integrated keypad with ergonomically arranged sensor key (advanced functions optional for CLASSIC)
• Fully integrated solenoids (CLASSIC), no compressed air required
• Integrated LED sewing light (optional)
• Easy maintenance and access, only a few tools needed

Ideal sewing characteristics, universal use, easy handling and high reliability — all of these features are demanded in the zigzag sector, and the Lockstitch Zig Zag Sewing Class 527i fulfils these demands in every aspect.

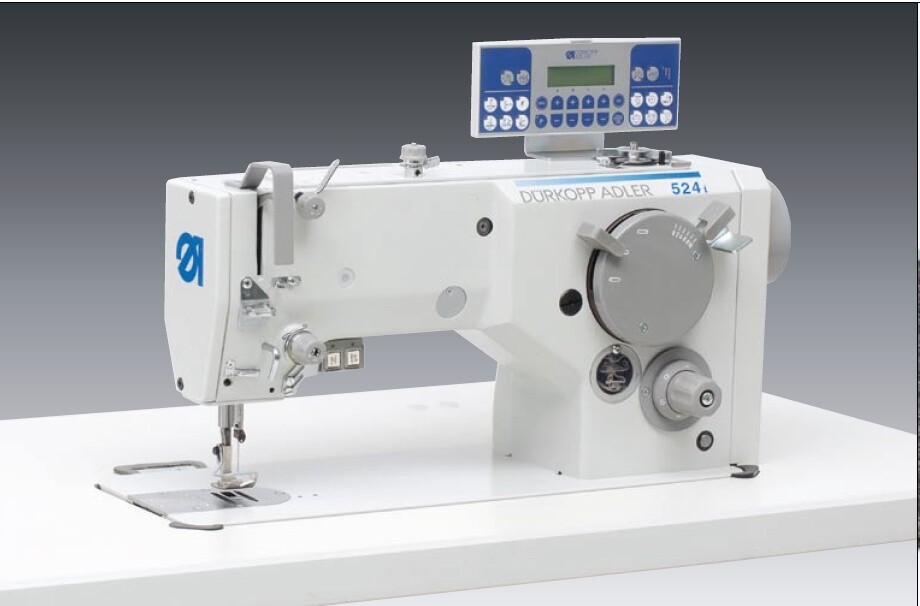

The lockstitch zigzag sewing machine classes 523i / 524i / 527i cover a wide range of zigzag operations, from light to heavy weight textile and leather materials as well as synthetic fabrics, all easily realised with these machines.

Advantages

• Facelift with modern elements and current DA design components (for stitch length, thread tension, thread control, etc.)
• New thread trimmer (CLASSIC) ensures secured cutting, now also for thick threads up to 10/3
• Modified lubrication and a reservoir in the machine arm reduce maintenance, guarantee the correct lubrication doses and protect the hook against wear
• New adjustable bobbin brake spring (CLASSIC) — the force of the spring can be adjusted by a regulation spring for better stitching results
• New needle thread tension regulation for more precise tension adjustment
• Optimized bobbin winder with easier adjustment of the max. value
• Improved working conditions for the operator through reduced noise level and less vibration
• New zigzag setting device — easy adjustment of zigzag width with low force
• Easy stitch length setting — adjustment without a lever, by turn button
• New push button for back-tacking (CLASSIC) ensures better reliability, plus an additional attached needle positioning button
• Use of incorporated mini motor and quick connection from the head to the motor (CLASSIC)
• Optimized thread trimming system with adjustable bobbin brake spring (CLASSIC) for better stitching results
• New oil pan
• Needle bar positioning on the left, middle or right side of the throat plate enables universal operations

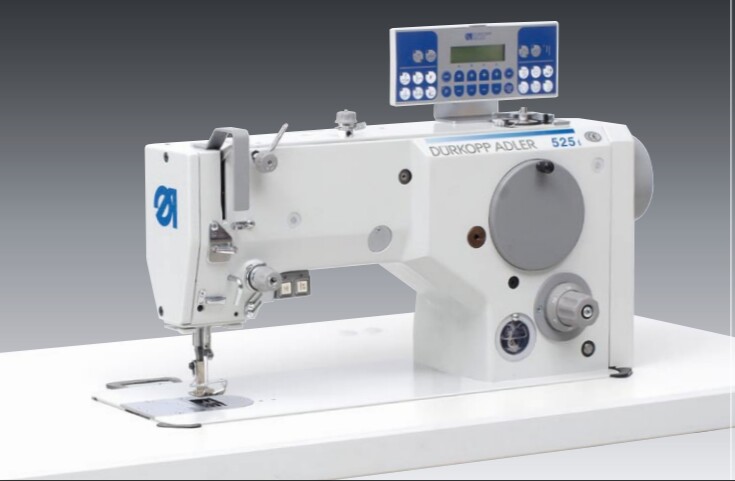

The lockstitch zigzag sewing machine class 525i, with interchangeable cams, is specially designed for ornamental (shape) stitching in ready-made garments and ladies' underwear made of elastic materials, as well as for ornamental stitching in textile footwear. The machine can be used for light to medium-heavy weight textile and leather materials.

Advantages

• Facelift with modern elements and current DA design components (for stitch length, thread tension, thread control, etc.)
• Single and twin needle decorative seams with 18 available pattern cams which can be exchanged in a few minutes
• Modified lubrication and a reservoir in the machine arm reduce maintenance, guarantee the correct lubrication doses and protect the hook against wear
• New needle thread tension regulation for more precise tension adjustment
• Optimized bobbin winder with easier adjustment of the max. value
• Improved working conditions for the operator through reduced noise level and less vibration
• New zigzag setting device — easy adjustment of zigzag width with low force
• Easy stitch length setting — adjustment without a lever, by turn button
• New oil pan

Sewing processes on tubular workpieces make the highest demands on the qualification of the operator and on the efficiency of the sewing technology. The subclasses of the new M-TYPE free arm machine 669, with a particularly slim machine arm, make it possible to professionally realize difficult sewing processes like assembly and binding operations, as well as decorative stitching on small leather goods and difficult-to-access or tubular workpieces.

A special feature of the 669 is its ability to bind the material edge with low tension. For this operation, the bottom feed stroke can be deactivated in just a few steps, enabling an optimum feeding movement. Sewing equipment especially adapted to this operation allows a precise binding result combined with maximum productivity and quality. Thanks to outstanding performance parameters, the 669 ECO offers high functionality and flexibility — at an attractive price.

Advantages

• 669 ECO — high functionality and flexibility at an attractive price
• Slim machine arm diameter of only 50 mm facilitates handling of difficult-to-access seam areas
• Adjustable bottom feed (with stroke for topstitching operations, without stroke for binding operations)
• Quick change to binding applications
• New hook with large bobbin capacity for longer sewing cycles and a wider sewing thread spectrum
• High productivity due to increased speed up to 3,000 stitches/min.
• Excellent climbing properties avoid shortened stitches and material damage at thick spots or cross seams
• Smooth, adapted sewing and feeding properties
• New hook cover allows time-saving bobbin change
• Manual additional thread tension for excellent stitch formation when sewing over thick spots
• Safety clutch protects against hook damage
• New lubricating system with adjustable hook lubrication
• Sewing drive fastened at the machine head

Sewing processes on tubular workpieces make the highest demands on the qualification of the operator and on the efficiency of the sewing technology. The subclasses of the new M-TYPE free arm machine 669, with a particularly slim machine arm, make it possible to professionally realize difficult sewing processes like assembly and binding operations, as well as decorative stitching on small leather goods and difficult-to-access or tubular workpieces.

A special feature of the 669 is its ability to bind the material edge with low tension. For this operation, the bottom feed stroke can be deactivated in just a few steps, enabling an optimum feeding movement. Sewing equipment especially adapted to this operation allows a precise binding result combined with maximum productivity and quality. The 669 CLASSIC Silverline is equipped with automatic basic functions.

Advantages

• 669 CLASSIC Silverline — with automatic basic functions like thread trimmer, automatic sewing foot lift and automatic back-tacking
• Slim machine arm diameter of only 50 mm facilitates handling of difficult-to-access seam areas
• Adjustable bottom feed (with stroke for topstitching operations, without stroke for binding operations)
• Quick change to binding applications
• New hook with large bobbin capacity for longer sewing cycles and a wider sewing thread spectrum
• High productivity due to increased speed up to 3,000 stitches/min.
• Excellent climbing properties avoid shortened stitches and material damage at thick spots or cross seams
• Smooth, adapted sewing and feeding properties
• New hook cover allows time-saving bobbin change
• New thread trimming system for sewing threads up to 15/3 (CLASSIC)
• Manual additional thread tension for excellent stitch formation when sewing over thick spots
• Safety clutch protects against hook damage
• New lubricating system with adjustable hook lubrication
• Sewing drive fastened at the machine head

New models of machines with bottom feed and driven roller presser foot are especially designed for all kinds of leather and textile materials and sport shoes, particularly for sewing thick threads. An efficient combination of feeding systems guarantees stable stitch length and performance. These machines are equipped with electro-pneumatic seam back-tacking and presser foot lift, enabling easy sewing of thick materials.

Advantages

• Highest precision on stitch locking even during sewing speed changes
• Automatic bobbin winder with start up function
• Pneumatic switchable second thread tension for optimised sewing results
• Low noise and vibration
• The powerful and effective feeding system with bottom feed and driven roller presser guarantees excellent material feed when processing different material thicknesses
• Integrated second stitch length for quick stitch length change
• Electro-pneumatic presser foot lifting and back-tacking enabling setting of high pressure on the foot for sewing of strong materials
• Large vertical hook
• Simple needle guard adjustment by screw
• Device for controlling the difference between the upper and bottom feed from +10% to –10% (optional)
• Fast hook exchange
• Needle change without tools (single needle machines)
• New lubricating system with central oil tank and oil pump
• Roller presser setting by operator without tools (optional)
• Integrated built-in motor to save energy, easy maintenance (optional — CLASSIC)
• Switch button for setting a reduced stitch, e.g. at material borders (CLASSIC)
• Integrated electro-pneumatic elements (CLASSIC)
• Integrated keypad with ergonomically arranged sensor key (CLASSIC)
• Easy maintenance and access, only a few tools needed

New models of machines with bottom feed and driven roller presser foot are especially designed for all kinds of leather and textile materials and sport shoes, particularly for sewing thick threads. An efficient combination of feeding systems guarantees stable stitch length and performance. These machines are equipped with electro-pneumatic seam back-tacking and presser foot lift, enabling easy sewing of thick materials.

Advantages

• Highest precision on stitch locking even during sewing speed changes
• Automatic bobbin winder with start up function
• Pneumatic switchable second thread tension for optimised sewing results
• Low noise and vibration
• The powerful and effective feeding system with bottom feed and driven roller presser guarantees excellent material feed when processing different material thicknesses
• Integrated second stitch length for quick stitch length change
• Electro-pneumatic presser foot lifting and back-tacking enabling setting of high pressure on the foot for sewing of strong materials
• Large vertical hook
• Simple needle guard adjustment by screw
• Device for controlling the difference between the upper and bottom feed from +10% to –10% (optional)
• Fast hook exchange
• Needle change without tools (single needle machines)
• New lubricating system with central oil tank and oil pump
• Roller presser setting by operator without tools (optional)
• Integrated built-in motor to save energy, easy maintenance (optional — CLASSIC)
• Switch button for setting a reduced stitch, e.g. at material borders (CLASSIC)
• Integrated electro-pneumatic elements (CLASSIC)
• Integrated keypad with ergonomically arranged sensor key (CLASSIC)
• Easy maintenance and access, only a few tools needed

These machines offer smooth sewing and a constantly high stitch quality. An excellent stitch pattern with constant, tight stitch formation is guaranteed by the optimized sewing kinematics — a new dimension of flexibility and functionality has been created. 887 machines are suitable for processing the most varied seams easily and with consistent stitch performance.

Advantages

• 4 subclasses with highly efficient equipment features
• Excellent stitch pattern, constant and tight stitch formation even during sewing speed changes
• Sewing start-up can be influenced by the movable needle plate inserts
• Automatic bobbin winder with winding starting aid
• Manually switchable second thread tension for optimised sewing results (ECO)
• Low noise and vibration
• The powerful and effective feeding system with wheel feed, needle feed and driven roller presser guarantees excellent material feed when processing different material thicknesses
• Feeding wheel with cross grooving for minimized marks on the fabrics
• Feeding wheel covered by rubber, for mark-free sewing (optional)
• Hook replacement without dismantling of the bobbin case
• Needle change without tools
• New lubricating system with central oil tank and oil pump
• Extra fine setting of roller presser position
• Easy maintenance and access, only a few tools needed

These machines offer smooth sewing and a constantly high stitch quality. An excellent stitch pattern with constant, tight stitch formation is guaranteed by the optimized sewing kinematics — a new dimension of flexibility and functionality has been created. 887 machines are suitable for processing the most varied seams easily and with consistent stitch performance.

Advantages

• 4 subclasses with highly efficient equipment features
• Excellent stitch pattern, constant and tight stitch formation even during sewing speed changes
• Sewing start-up can be influenced by the movable needle plate inserts
• Automatic bobbin winder with winding starting aid
• Low noise and vibration
• The powerful and effective feeding system with wheel feed, needle feed and driven roller presser guarantees excellent material feed when processing different material thicknesses
• Feeding wheel with cross grooving for minimized marks on the fabrics
• Feeding wheel covered by rubber, for mark-free sewing (optional)
• Hook replacement without dismantling of the bobbin case
• Needle change without tools
• New lubricating system with central oil tank and oil pump
• Extra fine setting of roller presser position
• Integrated built-in motor to save energy and for easy maintenance (optional — CLASSIC)
• "Reduced-stitch" device for setting a short stitch, e.g. at material edges, by using a switch button (CLASSIC)
• Fully integrated solenoids (CLASSIC), no compressed air required
• Integrated keypad with ergonomically arranged sensor key (CLASSIC)
• Easy maintenance and access, only a few tools needed

With its outstanding performance parameters, this series is setting new standards as regards stitching operations in shoe production. In conjunction with the needle feed and the driven roller foot, the double feeding of the wheel bottom feed ensures quiet and smooth sewing with exact stitch length, even when sewing over extremely thick spots.

The manual back-tacking device ensures a "stitch-in-stitch" back-tacking. The special sewing kinematics, allowing the use of a thread variety unrivalled so far, make this series a promising operating means of universal use.

Advantages

• Automatic bobbin winder with start up function
• Low noise and vibration
• The powerful and effective feeding system with wheel feed, needle feed and driven roller presser guarantees excellent material feed when processing different material thicknesses
• An easy replacement of wheel feeder without tools (single needle machines)
• Standard hook (22 mm bobbin) or large hook (26 mm bobbin), as per subclass
• Simple needle guard adjustment by screw
• Fast dismantling of hook
• Needle change without tools (single needle machines)
• Lubricating system with central oil tank and oil pump
• Roller presser setting by operator without tools (optional)
• Integrated LED sewing light (optional)
• Easy maintenance and access, only a few tools needed

With its outstanding performance parameters, this series is setting new standards as regards stitching operations in shoe production. In conjunction with the needle feed and the driven roller foot, the double feeding of the wheel bottom feed ensures quiet and smooth sewing with exact stitch length, even when sewing over extremely thick spots.

The manual back-tacking device ensures a "stitch-in-stitch" back-tacking. The special sewing kinematics, allowing the use of a thread variety unrivalled so far, make this series a promising operating means of universal use.

Advantages

• Automatic bobbin winder with start up function
• Low noise and vibration
• The powerful and effective feeding system with wheel feed, needle feed and driven roller presser guarantees excellent material feed when processing different material thicknesses
• An easy replacement of wheel feeder without tools (single needle machines)
• Standard hook (22 mm bobbin) or large hook (26 mm bobbin), as per subclass
• Simple needle guard adjustment by screw
• Fast dismantling of hook
• Needle change without tools (single needle machines)
• Lubricating system with central oil tank and oil pump
• Roller presser setting by operator without tools (optional)
• Integrated LED sewing light (optional)
• Easy maintenance and access, only a few tools needed
