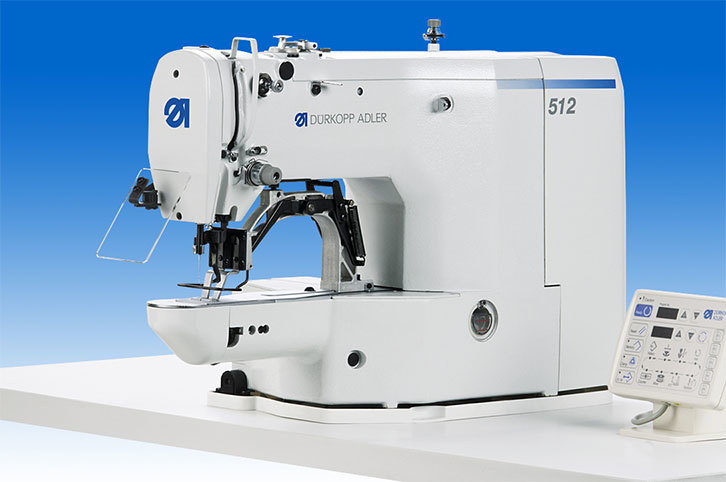

512-211
Lockstitch bar-tacker for light to medium material
Previous
Next
512-211
Lockstitch bar-tacker for light to medium material
Lockstitch bar-tacker for light to medium material
Reduced cycle time by step-motor controlled clamp lift
Oil free machine head with fresh oil for the hook
Secured sewing start by needle thread clamp below the needle plate
Neat seam beginning by thread wiper
50 pre-programmed standard bar-tack shapes
Memory capacity for 50 standard patterns which have been modified in length and/ or width
10 user defined bar-tack patterns can be stored
Favorite button for up to 25 seam patterns or sequences with up to 30 seam patterns
No compressed air needed
Typical field of application:
Bar-tacking operations in outerwear
Technical data:
Sewing field 40x30mm
Sewing speed max. 3.200 stitches/ Min
Clearance when lifting 17mm
Piece counter
Bobbin capacity counter
Memory capacity max. 16.000 stitches
For download
512 instruction manual
12MB
512 parts list
2MB
512 service instructions
1MB
