Single needle lockstitch post bed machine with wheel feed, needle feed and driven roller presser foot.
Video

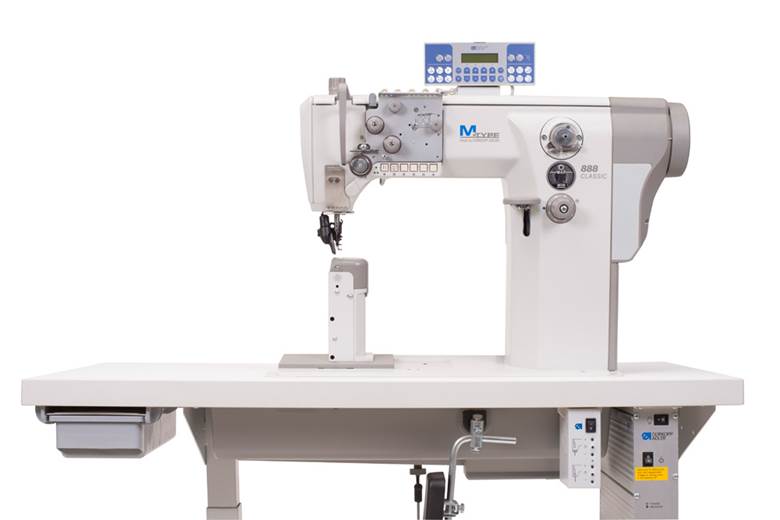

888-M CLASSIC
Single needle lockstitch post bed machine for stitching operations in the shoe production with DA Direct Drive
The M-TYPE generation of post bed machine class 888, has set new standards in the shoe production. When developing the new series, requirements of famous shoe manufacturers were taken into account. Therefore, future-oriented concept was created, characterised by highly efficient sewing parameters, durable construction, and unique flexibility. Together with the modern design, all it make class 888 an ideal operating means of universal use.
Your advantages
Highest precision on stitch locking even during sewing speedchanges
Secured sewing start after cutting can be influenced by movabl needle plate inserts
Automatic bobbin winder with start up function
Manual switchable second thread tension for optimised sewing results (ECO)
Low noise and vibration
The powerful and effective feeding system with wheel feed, needle feed and driven roller presser guarantees excelent material feed when processing different material thicknesses
Easy throat plate change without tools (Option for single needle machines)
An easy replacement of wheel feeder without tools (singleneedle machines)
Standard hook (22 mm bobbin) or large hook (26 mm bobbin), as per subclass
Simple needle guard adjustment by screw
Device for controlling the difference between the upper and bottom feed from +10 % to –10 % (optional)
Fast dismantling of hook
Needle change without tools (single needle machines)
Lubricating system with central oil tank and oil pump
Roller presser setting by operator without tools (optional)
Integrated built-in motor to save energy, easy maintenance
Switch button for setting a reduced stitch, e.g. at material borders and integrated keypad with ergonomically arranged sensor key (advanced functions optional for CLASSIC)
Fully integrated solenoids (CLASSIC), no compressed air required
Integrated LED sewing light (optional)
Easy maintenance and access, only a few tools needed
Machine can be equipped with parts set 0888 600214 for French binding (optional)
